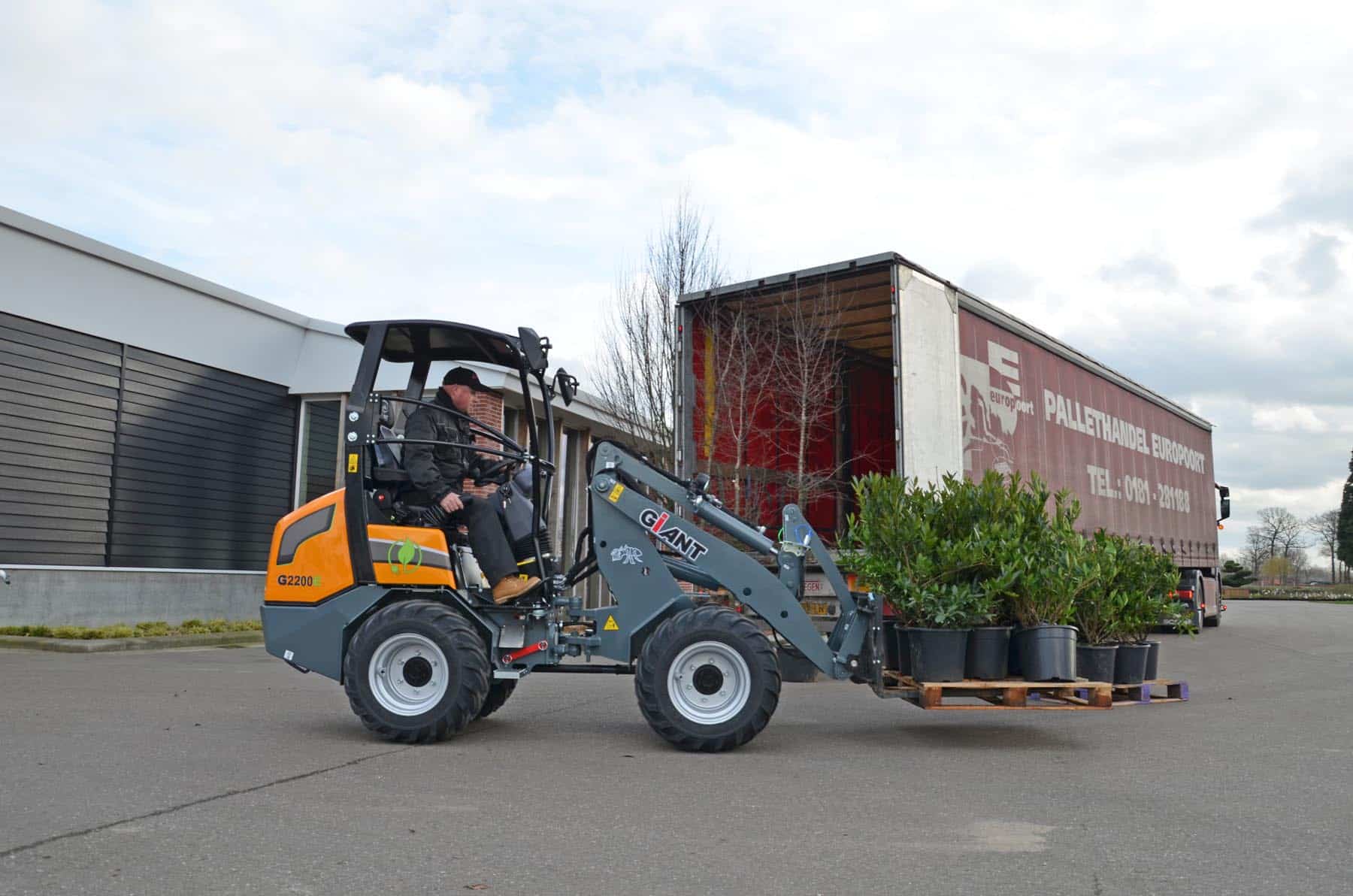

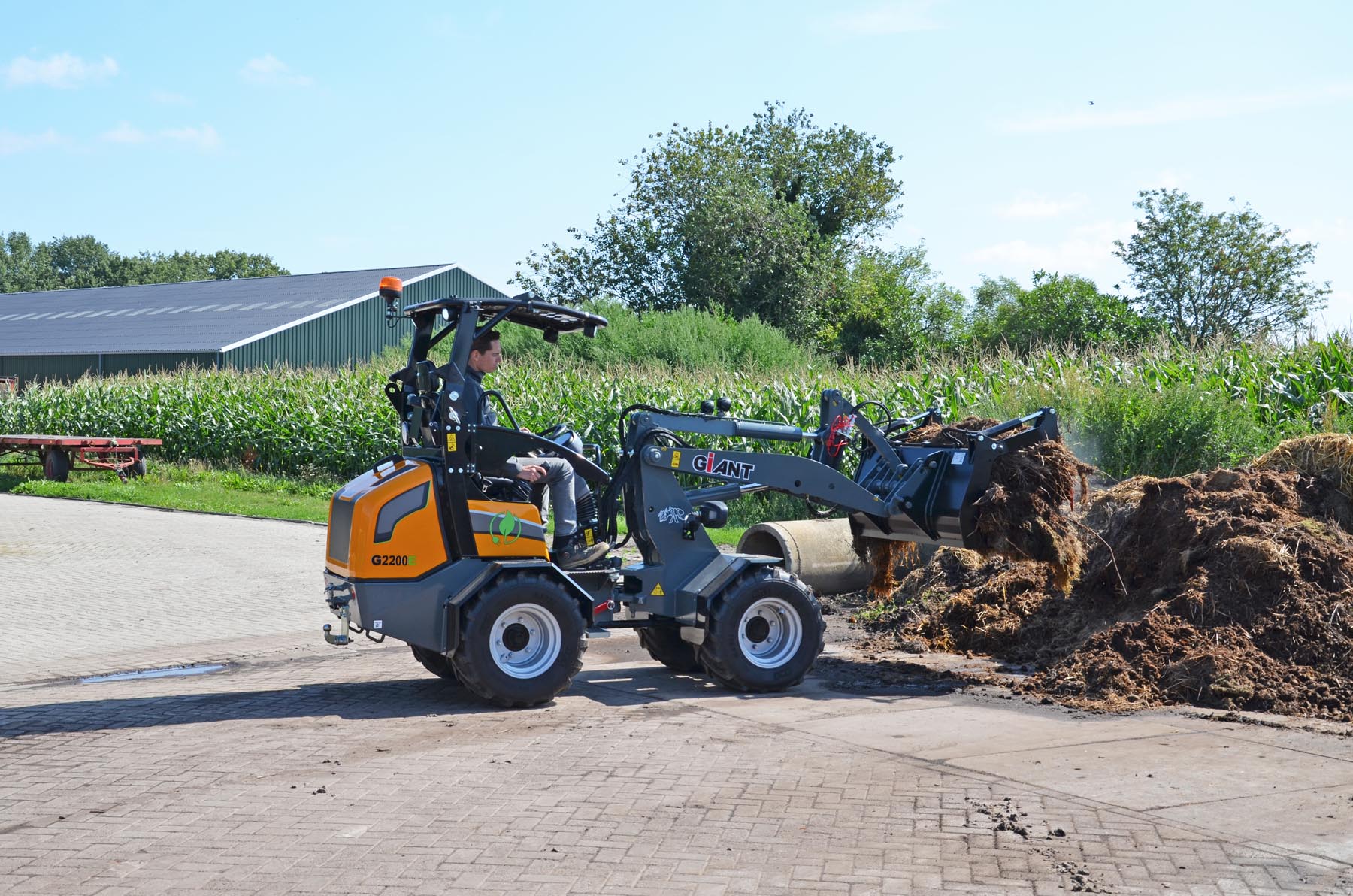

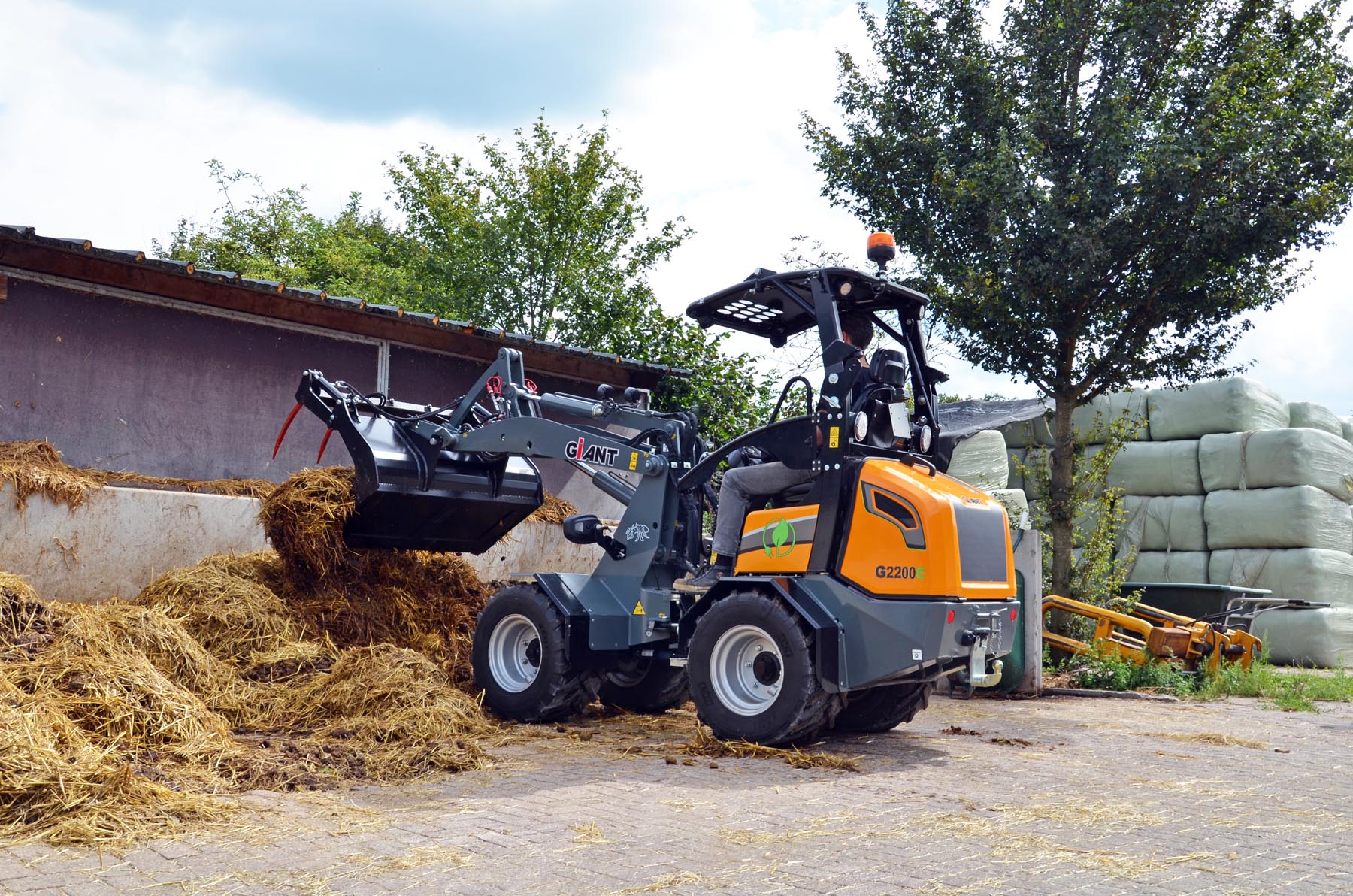

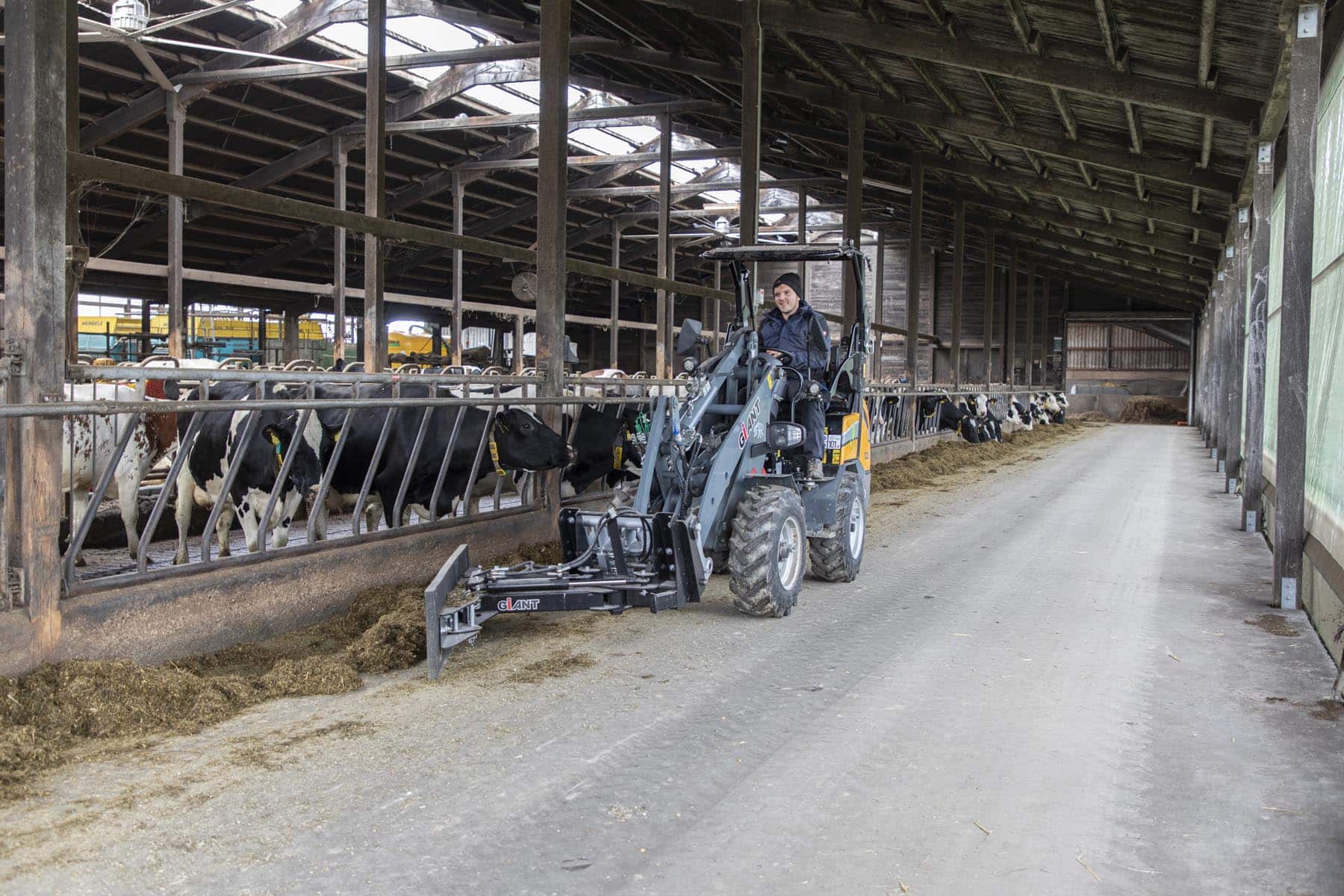

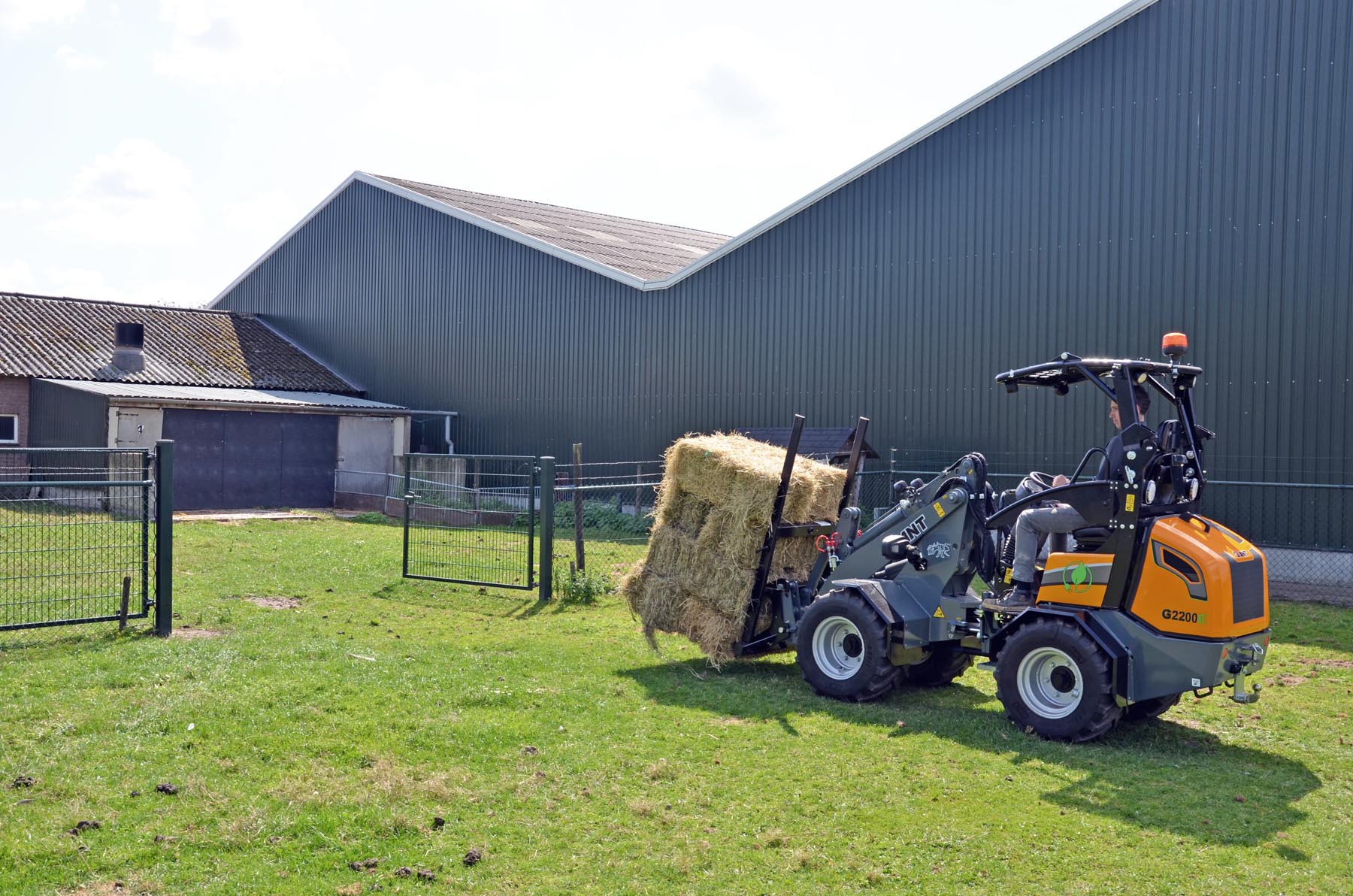

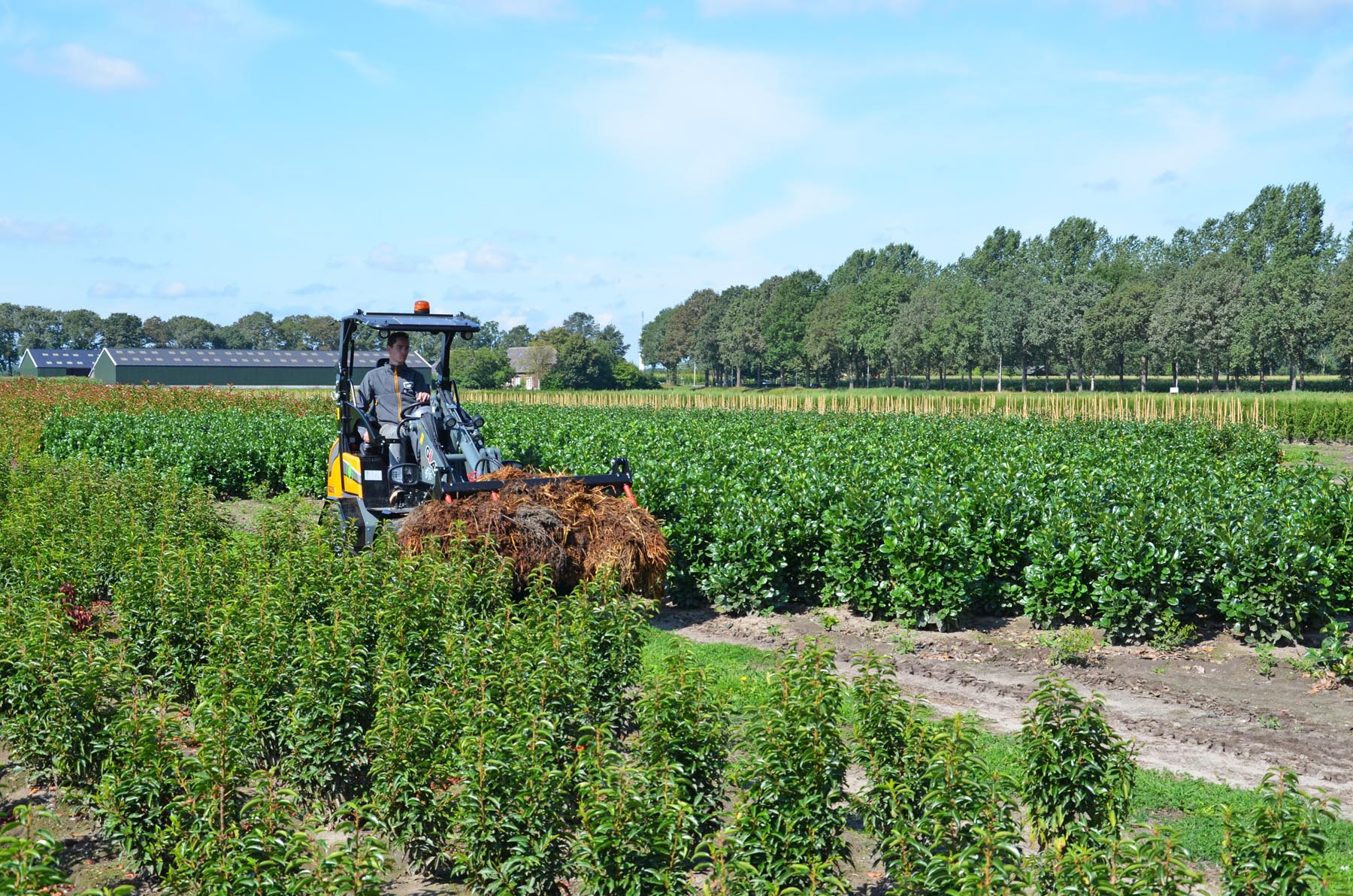

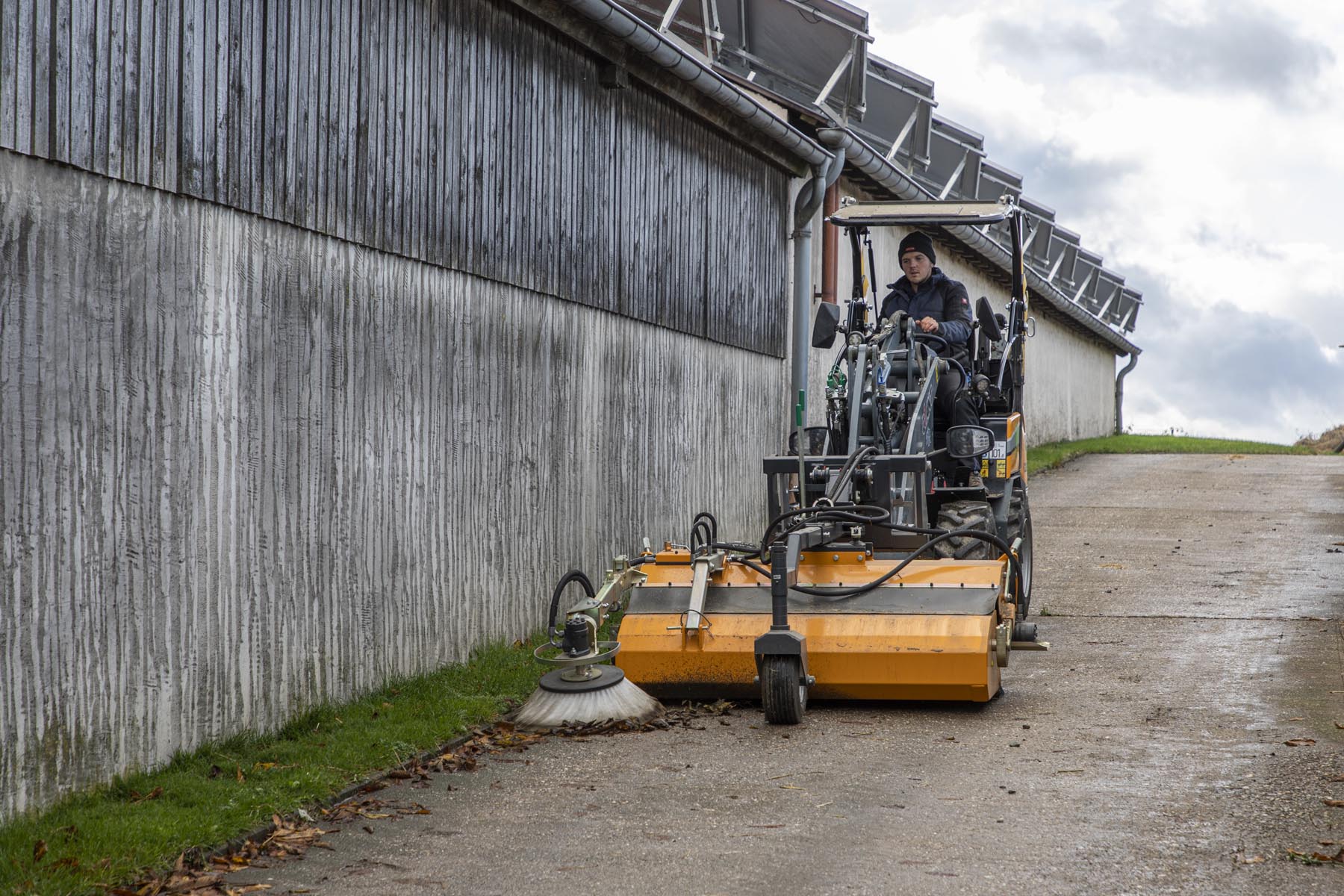

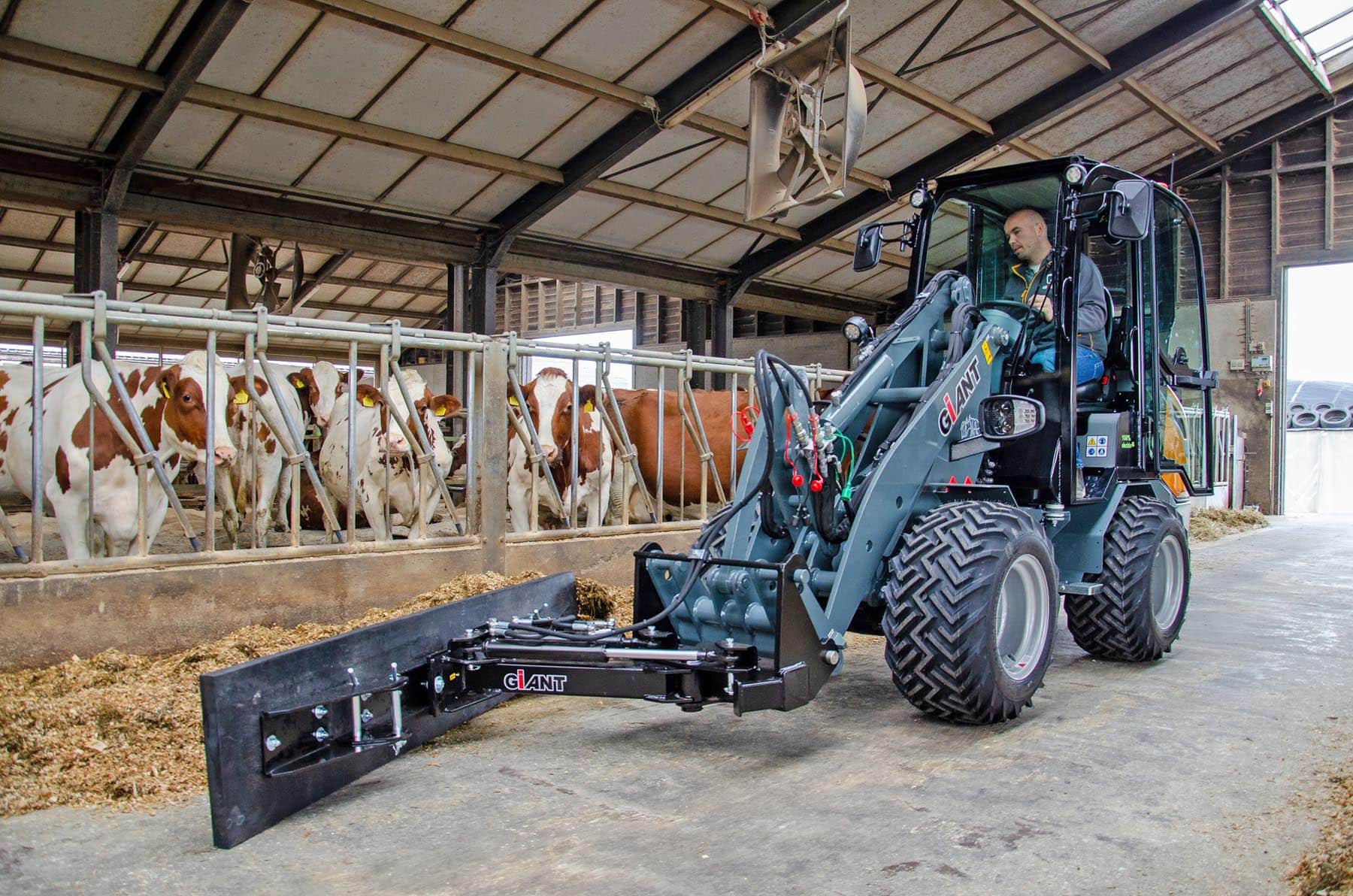

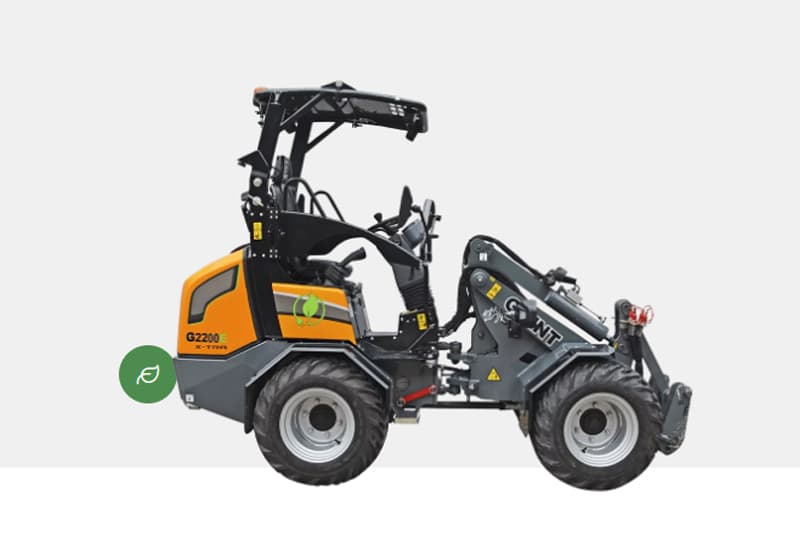

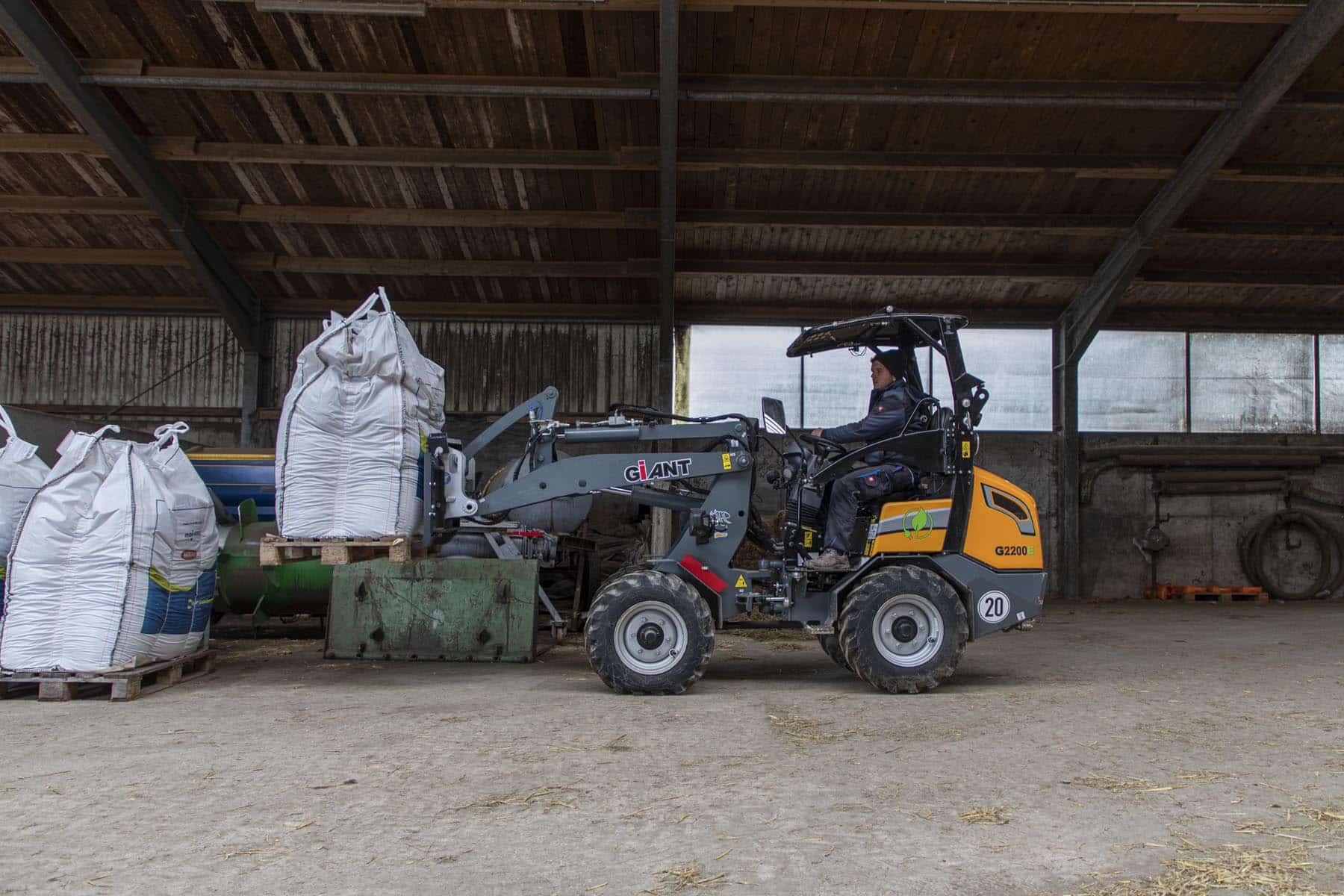

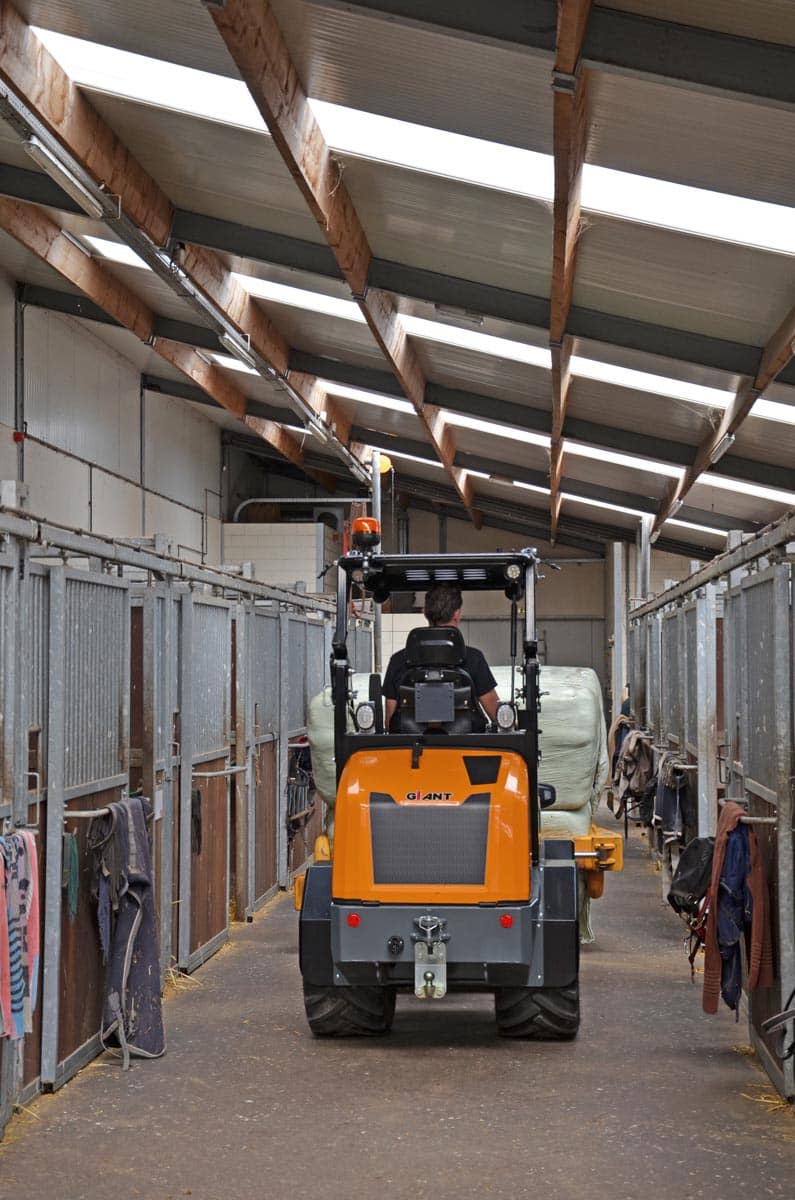

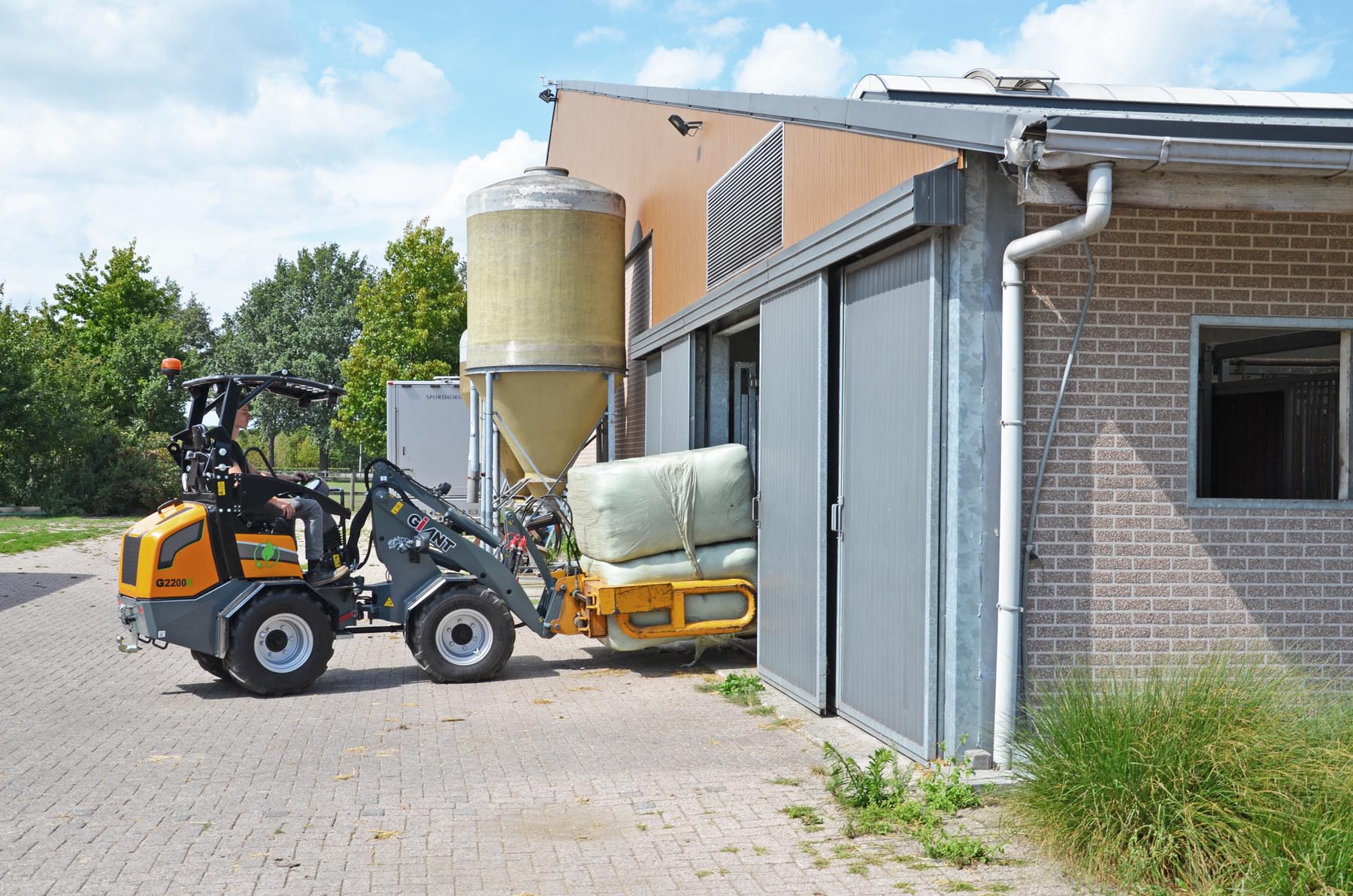

The G2200E is Tobroco-Giant’s first electric wheel loader, offering the advantages of an articulated loader with the benefits of quiet, emission-free operation. This makes it an excellent choice for indoor applications, working near animals, or in urban construction zones. It is equipped with a standard 260 Ah, 48V lithium-ion battery (with 390 Ah and 520 Ah options available) and features two separate electric motors: a 7 kW motor for propulsion and a 12 kW motor for the hydraulics, providing ample power for precise tasks. The machine can also regenerate energy while rolling or descending hills. With a lifting height of 2.85 meters and a lifting capacity of 1,650 kg, the G2200E is suitable for use in height-restricted areas.
Highlights:
• Category: Wheel Loaders
• Make: Giant
• Serial Number: G2200E21029
• Stock Number: 22520
• Model: G2200
Or call us at
1(800)654-6454
DESCRIPTION:
SPECIFICATION:
- Service weight: 2200 kg
- Lifting capacity: 1650 kg
- Tipping Load: 1450 kg
- Lifting height: 2825 mm
- Length without bucket: 2975 mm
- Machine height: 2300 mm
- Width on standard tires: 1080 mm
- Travel Speed: 0-18 km/h
- Electric motor: 6.5 kW
- Pulling force: 12500 N
- Hill-Hold control: Automatic brake to prevent rolling back on a slope.
- Parking brake: Drum brakes
FEATURES:
- 260 Ah, 48V lithium-ion battery
- Hydraulic Quick Hitch
- Double-acting valve at the front (mechanical)
- ROPS / FOPS safety roof with safety doors
- Hydraulic service brake on all four wheels
- Luxury seat with safety belt, armrest, and extended backrest
- Towing hook at the back
- Front-mounted LED work light
- Battery management system
- Anti-theft protection with access code
