Ventrac KX523 Snow Blower
(905) 765-5011
(905) 688-5160
Menu
Menu
new-holland-New

Highlights:

• Category: Snow Removal,Ventrac Equipment
• Make: Ventrac
• Serial Number: AA6474
• Stock Number: 23532
• Model: KX523

Or call us at
1(800)654-6454

DESCRIPTION:

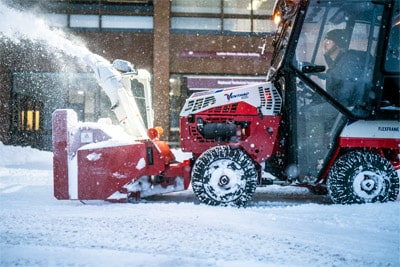

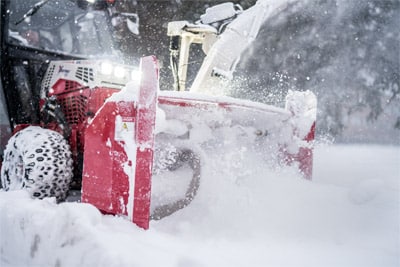

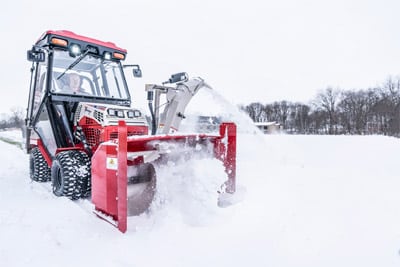

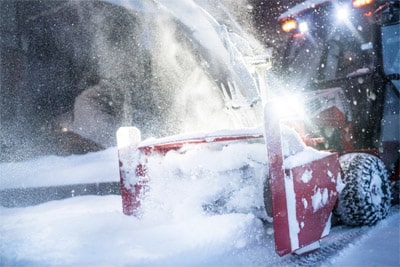

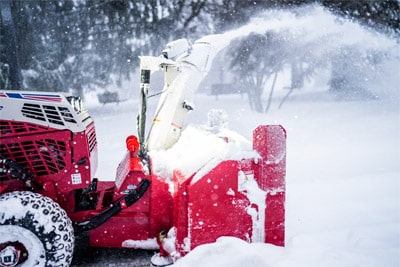

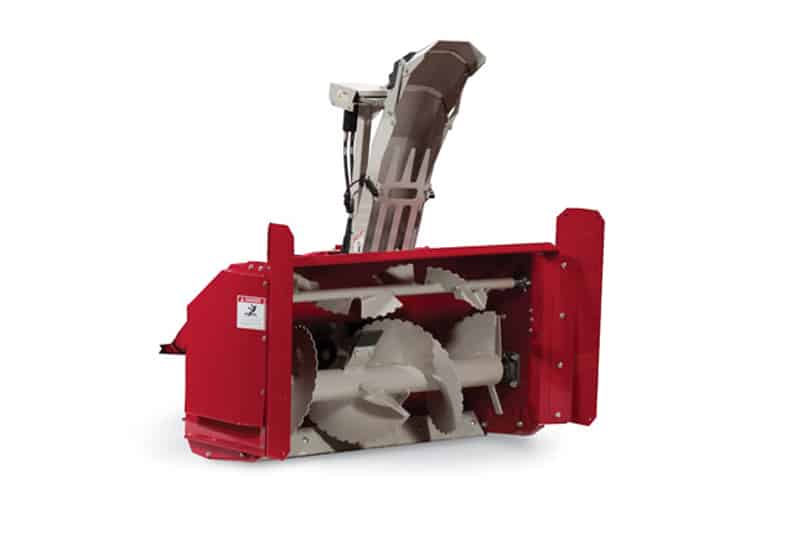

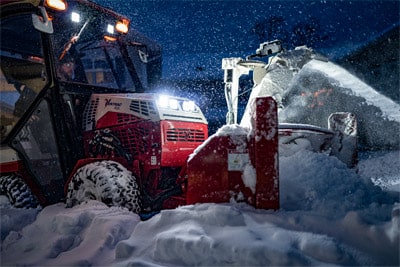

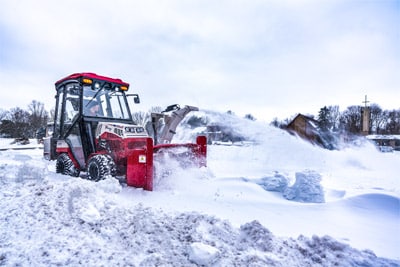

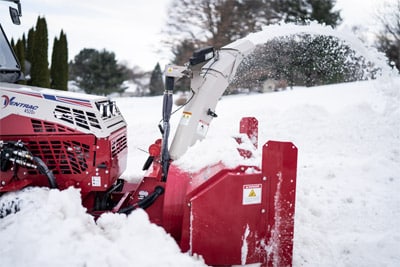

The Ventrac KX523 Snow Blower is a powerful two-stage snow blower designed for tackling deep snow. With a 52-inch working width, it can move up to 4500 pounds of snow per minute, throwing it distances of 35-40 feet. The discharge chute rotates 180 degrees and can be controlled hydraulically. Standard features include adjustable cast iron skid shoe discs and a reversible high-carbon hardened steel cutting edge. Optional features include a 12V actuator for chute angle adjustment and an upper auger kit.



SPECIFICATION:

  • Model: KX523
  • Working Width: 52 in
  • Overall Width: 52 3/4 in
  • Length: 49 in
  • Height: 56 1/2 in
  • Weight: 517 lbs
  • Auger Diameter: 16 in
  • Fan Diameter: 19 1/2 in
  • Cutting Height (without auxiliary auger): 26 1/2 in
  • Chute Rotation: 180°

FEATURES:

  • Two-Stage Design: Effectively handles deep snow.
  • High Capacity: Moves up to 4500 lbs of snow per minute.
  • Long Throwing Distance: Throws snow approximately 35-40 feet.
  • 180-Degree Chute Rotation: Hydraulically controlled for precise snow placement.
  • Adjustable Skid Shoes: Standard cast iron skid shoe discs for height adjustment.
  • Reversible Cutting Edge: High-carbon hardened steel for durability.
  • Optional Upper Auger Kit: For increased snow-moving capacity.

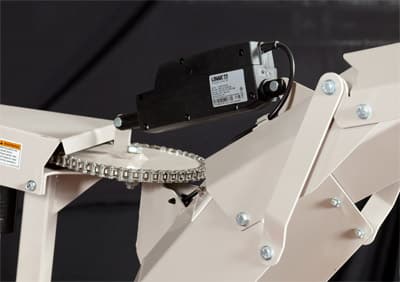

  • Optional 12V Actuator: For adjusting the chute angle from the operator’s seat.
