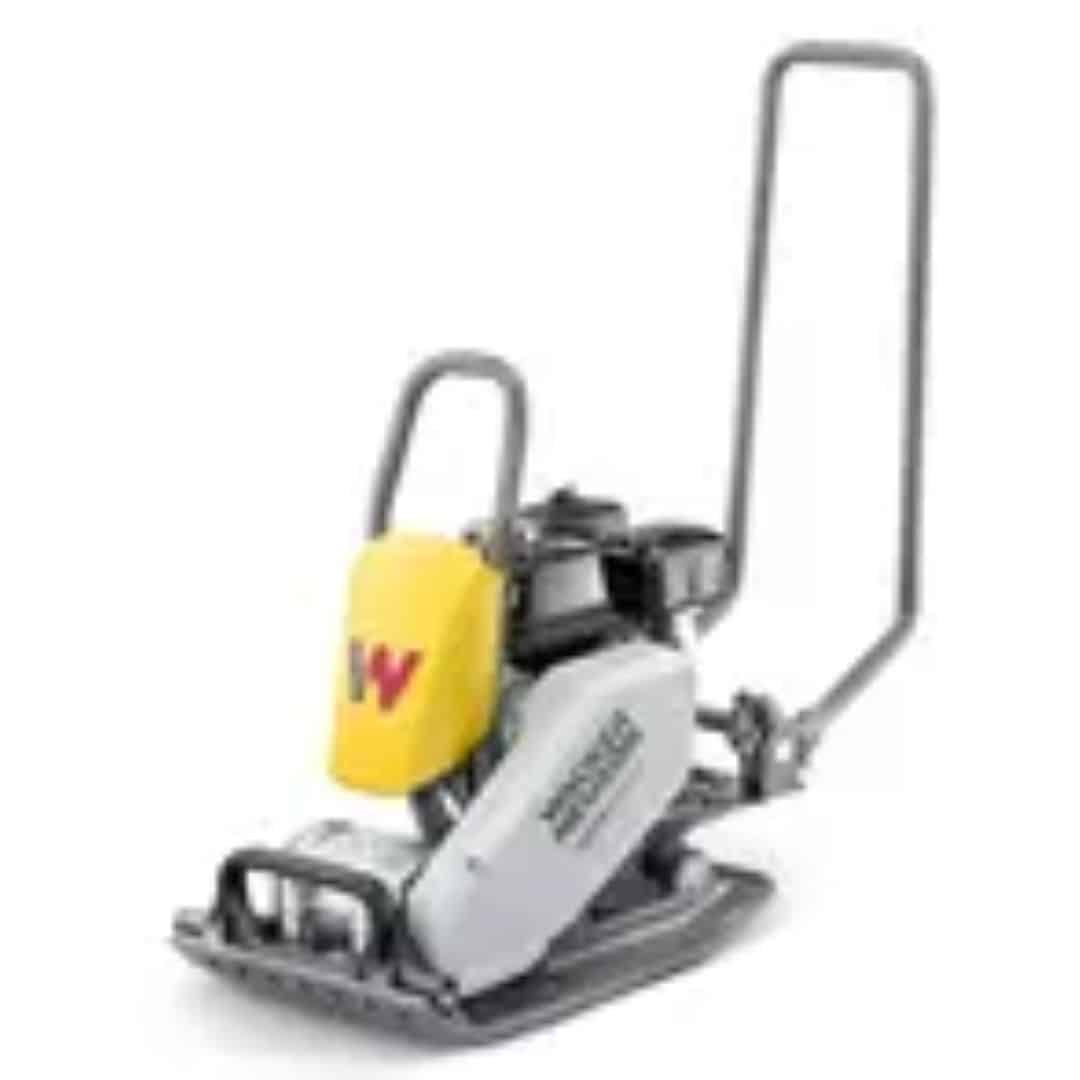

The New Wacker Neuson BPS1340A Single Direction Vibratory Plate is a high-performance compaction tool in the Vibratory Plates/Rammers category, designed for superior results on both granular soils and fresh asphalt. This Model BPS1340A delivers a significant Centrifugal force of 2,923 lbf, allowing it to handle larger areas with ease. Powered by a reliable 3.5 hp engine at a Nominal Engine speed of 3,600.0 1/min, the unit is optimized for efficiency, boasting an Area capacity of 6,716.7 ft2/h and a Forward Running speed of 1.4 fps. Its design features a 15.7 ” width and a robust 0.3 ” thick baseplate, providing a stable platform for high-impact compaction while maintaining a manageable operating weight of 147.7 lb.

The BPS series is celebrated for its excellent handling and maneuverability on soil and asphalt. Moving and turning these vibratory plates on fresh asphalt is unsurpassed in comfort and produces clean finishes with no marks. The angular side edges of the base plate allow for precise work along curbs and obstructions, ensuring a professional result every time. Furthermore, the guide handle responds precisely to steering movements while achieving low hand-arm vibrations of less than 5 m/s², which significantly reduces operator fatigue and allows for extended, comfortable working periods. With 36.4 % gradeability and a compact height of 26.1 ”, the BPS1340A is an exceptionally versatile machine for diverse job site requirements.

Centrifugal force: 2,923 lbf Area capacity: 6,716.7 ft2/h Forward Running: 1.4 fps Gradeability: 36.4 % Vibrations (Hz): 98.0 Hz Length Baseplate: 23.6 ” Width: 15.7 ” Width Baseplate: 15.7 ” Height: 26.1 ” Height Cover frame: 26.1 ” Thickness Baseplate: 0.3 ” Operating weight: 147.7 lb Ground clearance: 26.1 ” Effective power: 3.5 hp Nominal Engine speed: 3,600.0 1/min

Stock Number: 020170 Serial Number: 11427345
