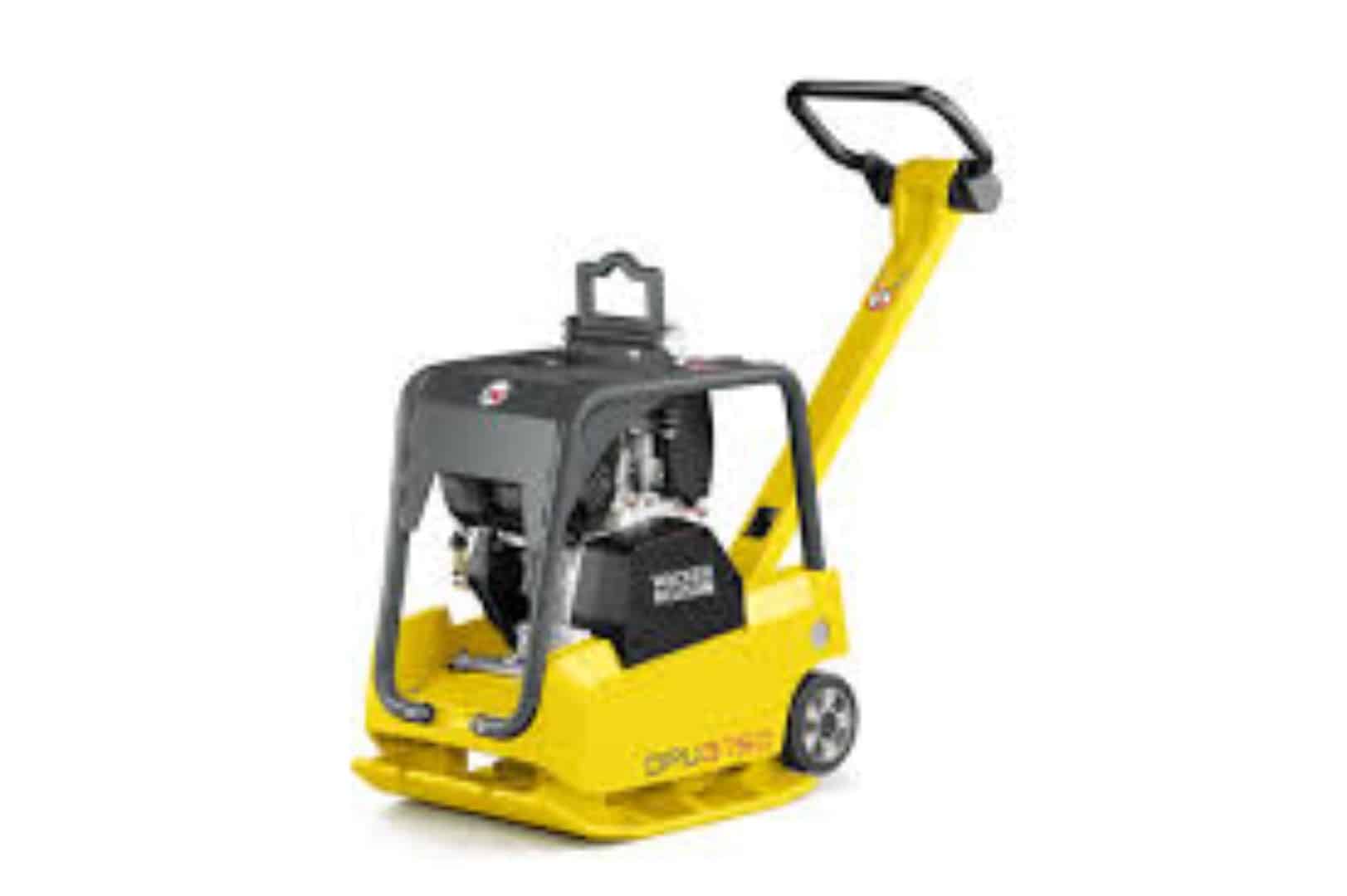

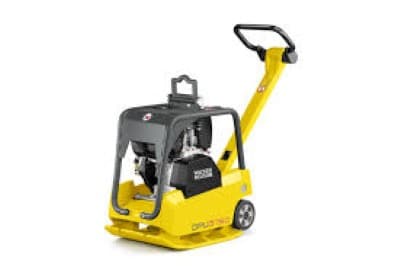

Wacker Neuson BPU3750A Reversible Vibratory Plate
(905) 765-5011
(905) 688-5160
Menu
Menu
new-holland-New

Highlights:

• Category: Vibratory Plates/Rammers
• Make: Wacker Neuson
• Serial Number: 11979729
• Stock Number: 31204
• Model: BPU3750A

<p><strong>Or call us at</strong><br /><strong>1(800)654-6454</strong></p>

DESCRIPTION:

This new Wacker Neuson BPU3750A (Stock Number: 31204, Serial Number: 11979729), from the Vibratory Plates/Rammers category, is a reversible vibratory plate. This machine is engineered for compacting soil and stone, offering both forward and reverse operation for enhanced maneuverability and efficiency in trenches and larger areas. Built by Wacker Neuson, it is known for its robust construction and high compaction force, making it a powerful tool for professional roadwork, landscaping, and construction projects.

SPECIFICATION:

Centrifugal force: 6,744 lbf
Area capacity: 6,135.5 ft2/h
Forward Running: 1.0 fps
Gradeability: 36.4 %
Vibrations (Hz): 90.0 Hz
Length Baseplate: 27.7 ”
Width: 19.7 ”
Width Baseplate: 19.7 ”
Height: 43.3 ”
Height Cover frame: 29.4 ”
Thickness Baseplate: 0.4 ”
Operating weight: 366.0 lb
Ground clearance: 29.4 – 33.7 ”
Effective power: 7.5 hp
Nominal Engine speed: 2,800.0 1/min

FEATURES:

Maximum compaction in the tightest spaces
The lightweight reversible vibratory plates are powerful and versatile making them ideal for base preparation, gardening, landscaping and maintenance work on streets, roads and parking lots. The Wacker Neuson vibratory plates in the 25-37 kN class come equipped with a sturdy, integrated wheel set. This unique feature provides mobility on the construction site.
