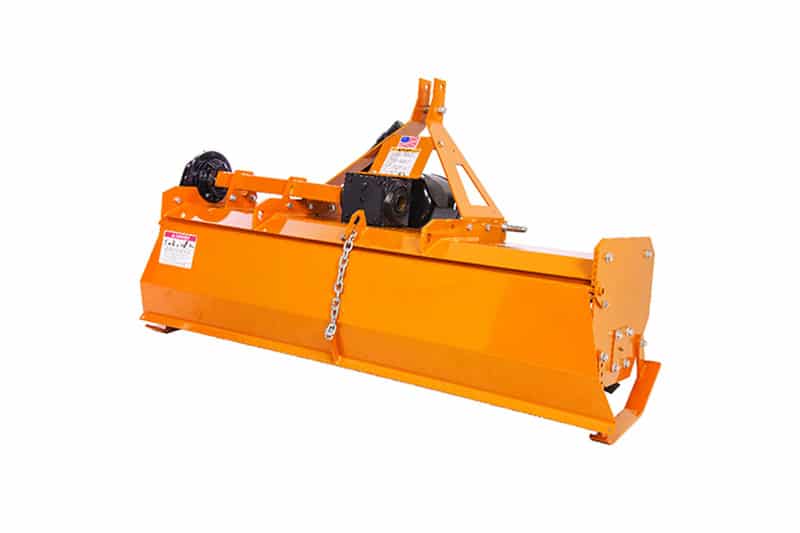

The New Woods TC60/TCR60 Rotary Tiller is a robust and highly efficient soil preparation tool in the Attachments category, engineered to create the perfect seedbed for gardens, small farms, and landscaping projects. This Model TC60 is specifically built for compact tractors with a PTO horsepower range of 20 – 45 hp and features a versatile Limited Cat 1 & 2 hitch. It offers a working width of 1.52m (60″) and a maximum tilling depth of 19cm (7.5″), making it ideal for deep soil aeration. The machine utilizes a chain drive system and is equipped with 42 C-type tines arranged across 7 flanges (6 per flange), achieving a rotor speed of 240 rpm at a standard tractor PTO speed of 540 rpm. Weighing 273kg, the unit includes a heavy-duty cast iron gearbox with a drain plug, slip clutch driveline protection, and an adjustable left offset of up to 39cm (15″).
In terms of performance and versatility, the TC60 is designed to deliver a smooth and professional finish across various soil conditions. It features a sturdy rear tailgate that ensures even dirt distribution and a level surface after each pass. The heavy-duty cast iron gearbox is built for long-term durability and simplified maintenance, while the choice of forward or reverse rotation allows operators to customize the tilling action to their specific terrain. For added convenience, the unit is fully Quick Hitch compatible, enabling fast and easy tractor connections. Whether you are breaking new ground or maintaining established plots, the TC60 combines high tine density with structural strength to provide consistent, high-quality results.
It has Tractor PTO Horsepower: 20 – 45hp Tractor Hitch: Limited Cat 1 & 2 Working Width: 1.52m (60″) Overall Width: 1.7m (66″) Weight: 273kg Maximum Tilling Depth: 19cm (7.5″) Drive Type: Chain Tines: 42 C-type tines on 7 flanges (6 per flange) Rotor Speed: 240rpm Tractor PTO Speed: 540rpm PTO Driveline Protection: Slip clutch Gearbox: Heavy Duty Cast Iron with drain plug Offset (left): Adjustable up to 39cm (15″)
Stock Number: 65814, Serial Number: 1329696
