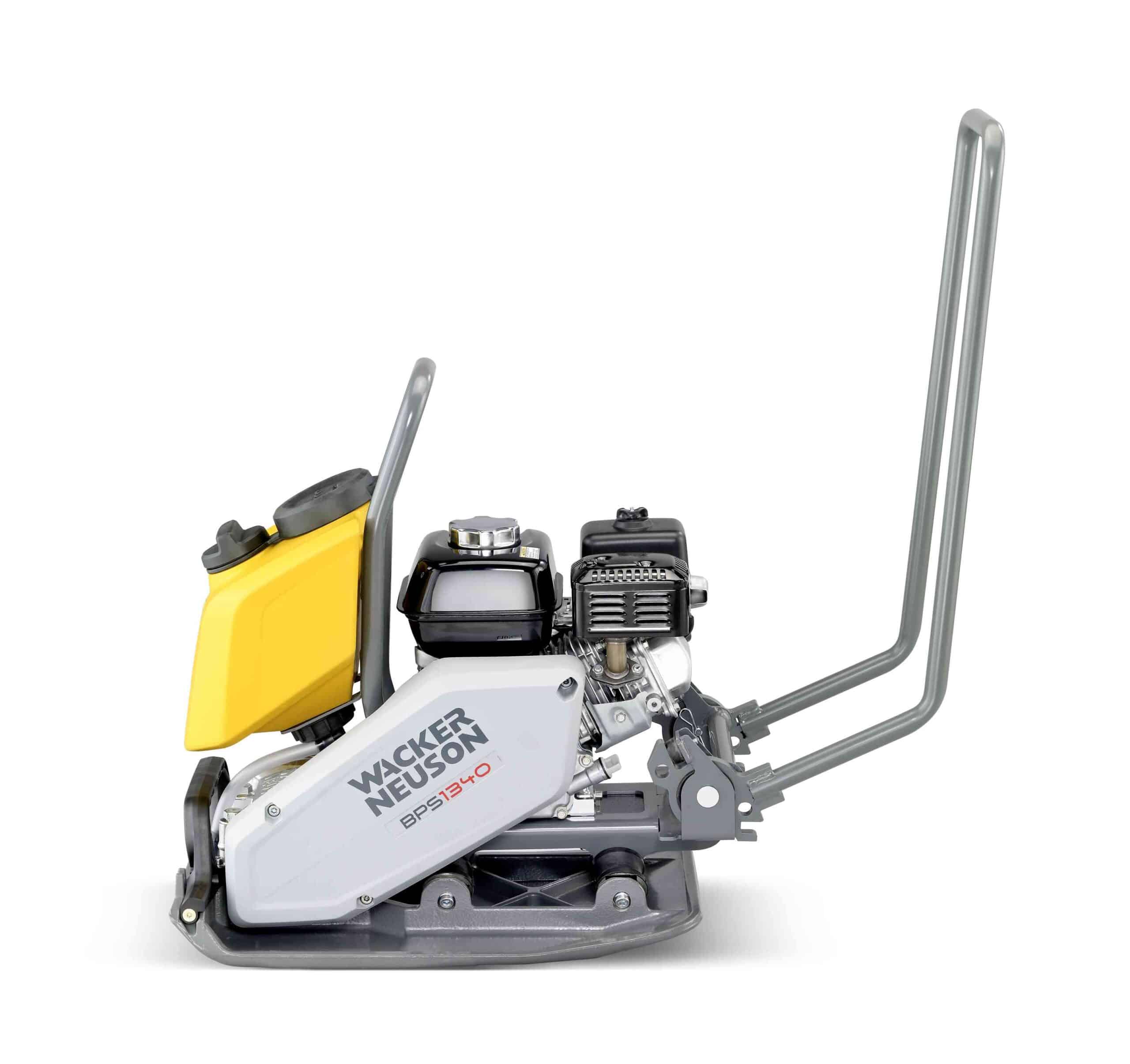

The New Wacker Neuson BPS1340A Single Direction Vibratory Plate is a high-performance compaction tool in the Vibratory Plates/Rammers category, specifically engineered for professional-grade results on both granular soils and fresh asphalt. This Model BPS1340A is a premium single-direction unit designed to combine a powerful gasoline engine with exceptional maneuverability. Delivering a substantial Centrifugal force of 2,923 lbf, it allows operators to handle larger surface areas quickly while maintaining precise control. With an operating weight of 147.7 lb and a robust 0.3 ” thick baseplate, the BPS1340A is optimized for efficiency and surface quality, achieving an Area capacity of 6,716.7 ft2/h and a Forward Running speed of 1.4 fps.

Centrifugal force: 2,923 lbf Area capacity: 6,716.7 ft2/h Forward Running: 1.4 fps Gradeability: 36.4 % Vibrations (Hz): 98.0 Hz Length Baseplate: 23.6 ” Width: 15.7 ” Width Baseplate: 15.7 ” Height: 26.1 ” Height Cover frame: 26.1 ” Thickness Baseplate: 0.3 ” Operating weight: 147.7 lb Ground clearance: 26.1 ” Effective power: 3.5 hp Nominal Engine speed: 3,600.0 1/min

Excellent handling and maneuverability on soil and asphalt The BPS series is distinguished by its outstanding handling capabilities. Moving and turning these vibratory plates on fresh asphalt is unsurpassed in comfort and produces clean finishes with no marks. Even clean finishes at curbs are easy to produce due to the angular side edges of the base plate. The guide handle responds precisely to steering movements while still achieving low hand-arm vibrations of less than 5 m/s², which makes long and comfortable working conditions possible.

Stock Number: 020170 Serial Number: 11427345
